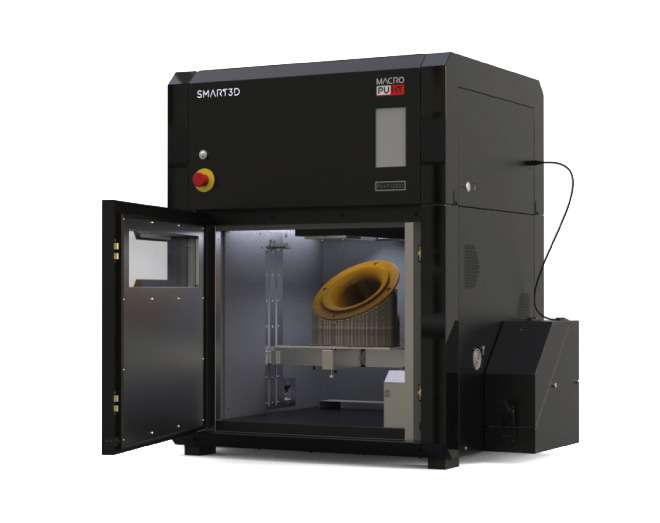

FFFSource: Smart3D; manufacturer brochure hosted by DisegnosoftSmart3D Macro HT
High-temperature filament system with beltless XY motion.
Source reviews: 2026-10-17.
Specifications are reported claims, not independent test results.
The details that matter.
Published specifications for this model. Follow a field's source for its configuration and measurement conditions; older fields refer to the profile's reference list.
| Introduction year | Not verified |
|---|---|
| Model family | Macro |
| Process | FFF |
| Build envelope (X × Y × Z) | 350 × 350 × 400 mm Sources: Smart3D Macro HT specifications |
| Nominal box volume | 49.00 L · calculated from the envelope Sources: Smart3D Macro HT specifications |
| Enclosure | Enclosed Sources: Smart3D Macro HT specifications |
| Maximum nozzle temperature | 500 °C Sources: Smart3D Macro HT specifications |
| Materials cited in this profile | PEEK CF, PEKK, PEI, PPSU Sources: Smart3D Macro HT specifications |
| Manufacturer listing status | Documented by manufacturer |
| Regional stock and price | Check the manufacturer |
| Market grouping | Industrial · editorial grouping |
Technical specifications
| Chamber Temperature Max (°C) | 200 Sources: Smart3D Macro HT specifications |
|---|---|
| Filament diameter (mm) | 1.75 Sources: Smart3D Macro HT specifications |
| Extrusion System | Dual extrusion with automatic nozzle lifting Sources: Smart3D Macro HT specifications |
| Motion System | Ballscrew XY Sources: Smart3D Macro HT specifications |
Configuration and workflow
Macro HT combines dual extrusion with automatic nozzle lifting, active chamber control and material drying. Production-module chambers can be configured differently; their combined footprint is not one contiguous build envelope.
Explore the model family.
An exact introduction year has not been established in the reviewed sources.
Family: Macro · Listing status only
Explore Smart3D through the generationsRead this with the specifications
The cited manufacturer documentation identifies this configuration; regional supply and stock were not established.
A larger nominal envelope does not establish better print quality. Fit depends on the configuration, usable area, supports, and orientation.
INDUSTRY F340
Manufacturer-issued brochure preserved by distributor Multi3DPrint; original manufacturer links are no longer available.
