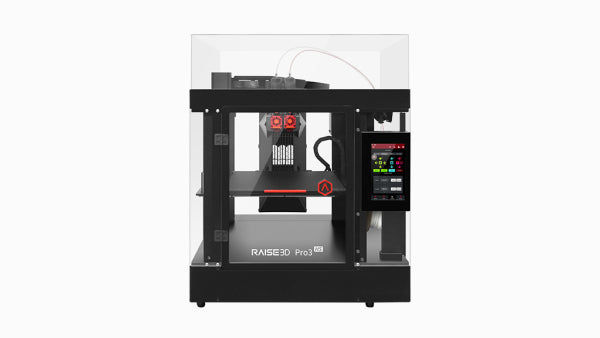

FFFManufacturer image: Raise3DRaise3D Pro3 HS
Professional dual-extrusion filament system.
Source reviews: 2026-10-15, 2026-10-16.
Specifications are reported claims, not independent test results.
The details that matter.
Published specifications for this model. Follow a field's source for its configuration and measurement conditions; older fields refer to the profile's reference list.
| Introduction year | Not verified |
|---|---|
| Model family | Not verified |
| Process | FFF |
| Build envelope (X × Y × Z) | 300 × 300 × 300 mm |
| Nominal box volume | 27.00 L · calculated from the envelope |
| Enclosure | Not verified |
| Maximum nozzle temperature | 320 °C |
| Materials cited in this profile | Not verified |
| Manufacturer listing status | Listed by manufacturer |
| Regional stock and price | Check the manufacturer |
| Market grouping | Professional · editorial grouping |
Technical specifications
| Dual-nozzle build envelope (mm) | 255 × 300 × 300 Envelope for dual-extruder operation. |
|---|---|
| Machine dimensions (mm) | 620 × 626 × 760 |
| Filament diameter (mm) | 1.75 |
| Bed Max (°C) | 120 |
| Nozzle Diameter (mm) | 0.4 |
| Optional Nozzle Diameters (mm) | 0.2, 0.6, 0.8, 1 |
| Layer height (µm) | 50–600 Across supported nozzles; for the default 0.4 mm nozzle, the manufacturer recommends 100–300 µm layers. |
| Print Speed Max (mm/s) | 500 Manufacturer maximum; composite-material profiles use lower speeds. |
| Bed Leveling | Mesh leveling with flatness detection |
| Preparation Software | ideaMaker |
| Spool Switching | Automatic handover to the second extruder |
Different extrusion modes
The single-extruder envelope is wider than the dual-extruder envelope. The electronic lifting system manages the two heads. Hyper Core material speeds are described separately from the maximum motion headline.
Options and material identification
The large 2.5 kg spool boxes are sold separately. The source qualifies RFID identification by compatible tagged spools; do not assume that any spool can be identified. Nozzle size changes the usable layer range.
Explore the model family.
An exact introduction year has not been established in the reviewed sources.
Explore Raise3D through the generationsRead this with the specifications
Single-extruder envelope; dual extrusion reduces width to 255 mm.
A larger nominal envelope does not establish better print quality. Fit depends on the configuration, usable area, supports, and orientation.
