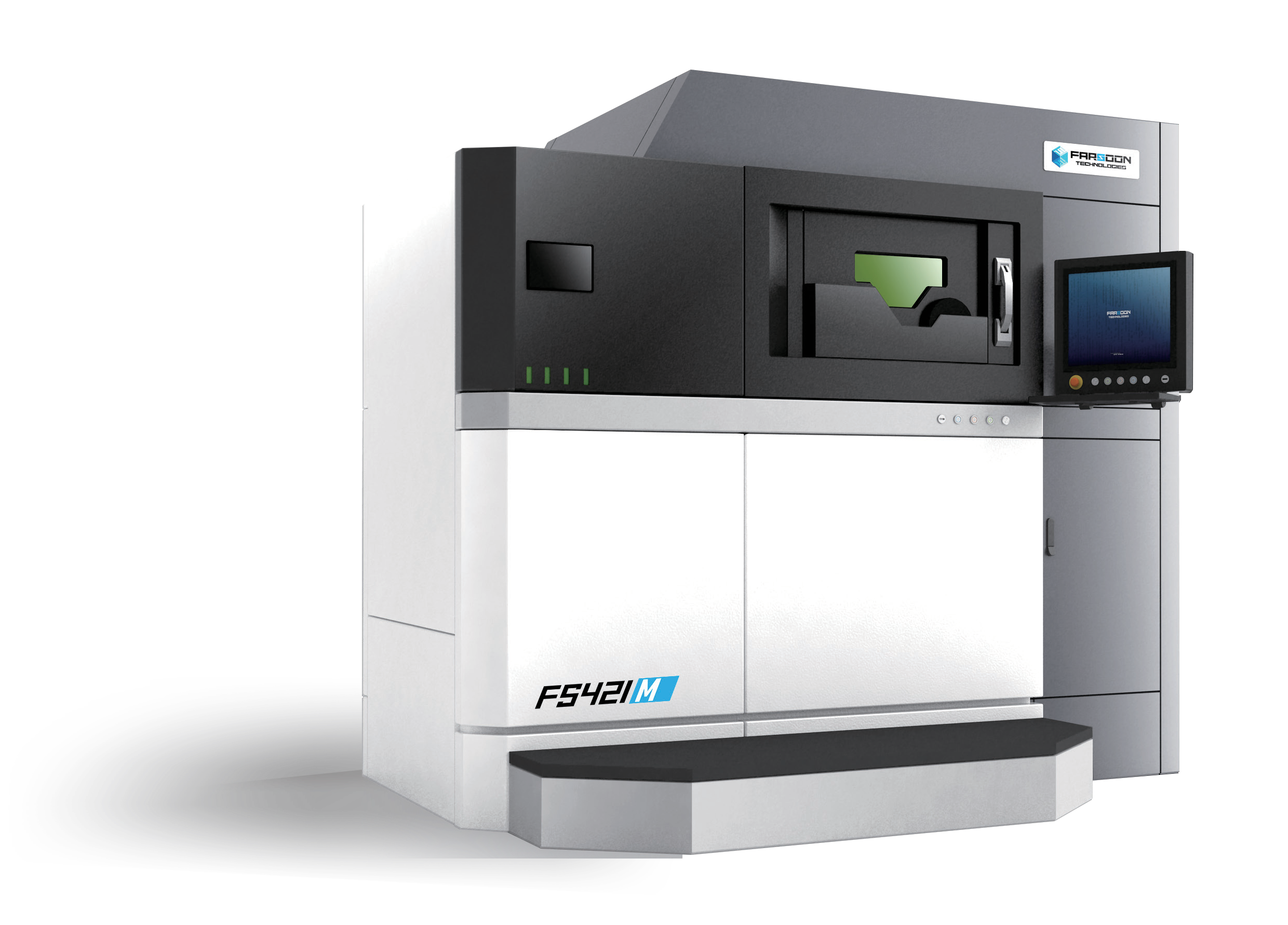

LPBFManufacturer image: FarsoonFarsoon FS421M
Single-laser metal powder bed fusion system; FS421M-2 is the twin-laser sibling in the same platform family.
Source reviews: 2026-10-16.
Specifications are reported claims, not independent test results.
The details that matter.
Published specifications for this model. Follow a field's source for its configuration and measurement conditions; older fields refer to the profile's reference list.
| Introduction year | Not verified |
|---|---|
| Model family | LPBF |
| Process | LPBF |
| Build envelope (X × Y × Z) | 425 × 425 × 420 mm |
| Nominal box volume | 75.86 L · calculated from the envelope |
| Enclosure | Not verified |
| Materials cited in this profile | Metal powder |
| Manufacturer listing status | Official documentation available; current order availability not confirmed |
| Regional stock and price | Check the manufacturer |
| Market grouping | Industrial · editorial grouping |
Technical specifications
| Configuration Options | Single laser FS421M or dual laser FS421M-2; 500 W per laser |
|---|---|
| Laser Count | 1 |
| Laser Power (W) | 500 |
| Layer height (µm) | 20–100 |
| Maximum Scan Speed | 15.2 m/s Scanner maximum, not volumetric build rate. |
| Machine dimensions (mm) | 2770 × 3220 × 2350 |
| Machine weight (kg) | 3450 Approximate single-laser mass, not FS421M-2. |
| Process Gas | Argon, Nitrogen |
| Average Process Gas Consumption | 3–5 L/min |
| Operating Temperature (°C) | 22–28 |
| Software | BuildStar, MakeStar |
| Operating System | 64-bit Windows 10 |
| Input Format | STL |
| Power Supply | 400 V ±10%, 3~/N/PE, 50 Hz, 32 A; US transformer supplied |
Single-laser model and twin-laser sibling
The August 2022 sheet lists FS421M with one 500 W laser and FS421M-2 with two. This record describes the single-laser model, including its approximately 3450 kg weight; the dual model is about 3500 kg.
Powder circuit and build geometry
An inert closed-loop system integrates powder supply, feeding and recycling. A rail system supports build-cylinder exchange. The 425 × 425 × 420 mm stated space excludes build-plate thickness, and the usable volume still depends on the part and material. Open parameters allow material and process development.
Explore the model family.
An exact introduction year has not been established in the reviewed sources.
Family: LPBF · Listing status only
Explore Farsoon through the generationsRead this with the specifications
The August 2022 official sheet distinguishes the single-laser FS421M (one 500 W laser, approximately 3450 kg) from FS421M-2 (two lasers). Its stated build-cylinder dimensions exclude the build plate; usable geometry remains material- and setup-dependent. Present ordering status is not established.
A larger nominal envelope does not establish better print quality. Fit depends on the configuration, usable area, supports, and orientation.
