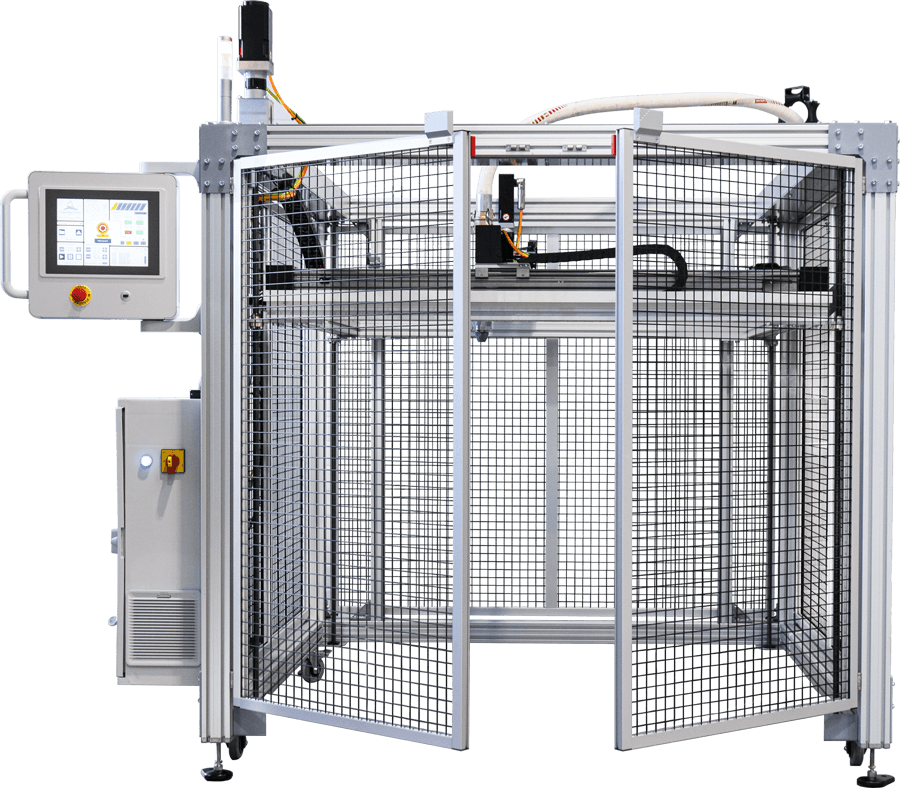

Concrete extrusionManufacturer image: Constructions-3DConstructions-3D MiniPrinter EDU
Concrete printing platform for education and material research.
Source reviews: 2026-10-16.
Specifications are reported claims, not independent test results.
The details that matter.
Published specifications for this model. Follow a field's source for its configuration and measurement conditions; older fields refer to the profile's reference list.
| Introduction year | Not verified |
|---|---|
| Model family | Not verified |
| Process | Concrete extrusion |
| Build envelope (X × Y × Z) | Not verified |
| Nominal box volume | Not verified |
| Enclosure | Not verified |
| Materials cited in this profile | Printable concrete |
| Manufacturer listing status | Manufacturer documentation verified; availability not established |
| Regional stock and price | Check the manufacturer |
| Market grouping | Industrial · editorial grouping |
Technical specifications
| Machine dimensions (mm) | 2250 × 1850 × 2180 |
|---|---|
| Machine weight (kg) | 430 |
| Maximum Print Speed | 400 mm/s |
| Repeatability | Less than 1 mm Machine repeatability claim, not finished-object accuracy. |
| Standard Aggregate Limit (mm) | 4 |
| Optional Aggregate Limit (mm) | 6 Requires the DN50 additional kit. |
| Control Interface | Touchscreen controlling printer and pump |
| File Formats | STL and DXF |
| Material Platform | Pumpable mortar formulations |
| Training | Two-day training program |
Concrete preparation
The wet-mix pump needs a separate mixer; the dry-mix arrangement can feed from a silo. Mortar particle size must match the installed pump and delivery diameter.
Configuration details
The page gives a 4 mm aggregate limit for DN35 and 6 mm only with the additional DN50 kit. Its 1,200 mm cubic build-area label says PRO despite the EDU page title, so that ambiguous envelope has not been added as an EDU specification.
Explore the model family.
Introduction year has not been established from the reviewed source.
Explore Constructions-3D through the generationsRead this with the specifications
Model identity and process documented by the manufacturer. No rectangular build envelope or launch year is inferred.
A larger nominal envelope does not establish better print quality. Fit depends on the configuration, usable area, supports, and orientation.
