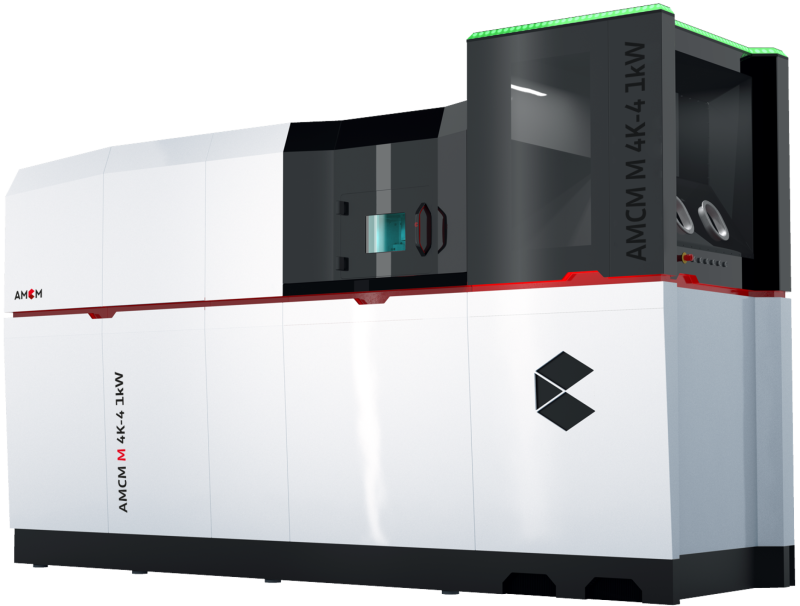

LPBFManufacturer image: AMCMAMCM M 4K
Extended-height metal powder bed fusion machine based on the EOS M 400 platform.
Source reviews: 2026-10-16.
Specifications are reported claims, not independent test results.
The details that matter.
Published specifications for this model. Follow a field's source for its configuration and measurement conditions; older fields refer to the profile's reference list.
| Introduction year | Not verified |
|---|---|
| Model family | LPBF |
| Process | LPBF |
| Build envelope (X × Y × Z) | 450 × 450 × 1000 mm |
| Nominal box volume | 202.50 L · calculated from the envelope |
| Enclosure | Not verified |
| Materials cited in this profile | Metal powder |
| Manufacturer listing status | Official documentation available; current order availability not confirmed |
| Regional stock and price | Check the manufacturer |
| Market grouping | Industrial · editorial grouping |
Technical specifications
| Configuration Options | M 4K-4 1 kW and M 4K-4 FLX variants |
|---|---|
| Laser Count | 4 |
| Standard Laser Power (W) | 1000 |
| Afx Laser Power (W) | 1200 |
| Laser Wavelength (nm) | 1070 |
| Maximum Scan Speed | 7 m/s |
| Standard Focus Diameter (µm) | 85 |
| Afx Focus Range (µm) | 85–210 |
| Machine dimensions (mm) | 6340 × 3450 × 3900 Includes conveyor; W × D × H. |
| Recommended Floor Area (m²) | 90 Approximate recommended installation area. |
| Machine weight (kg) | 9300 Approximate manufacturer specification. |
| Power Supply | 400 V, 63 A |
| Standard Power Consumption (kW) | 20 |
| Afx Power Consumption (kW) | 40 |
| Gas Supply | 7000 hPa, 20 m³/h |
Standard and beam-shaping configurations
The M 4K-4 1 kW has four 1000 W lasers with an approximately 85 µm focus. The M 4K-4 FLX uses four 1200 W AFX sources and selectable Gaussian-to-ring profiles spanning 85–210 µm. Their electrical consumption specifications differ.
Envelope and installation
Both listed four-laser configurations have a 450 × 450 × 1000 mm build volume. Machine dimensions include the conveyor and the manufacturer recommends about 90 m² of installation space. Taller or six-laser machines mentioned on the page are customization examples, not the standard M 4K-4.
Explore the model family.
An exact introduction year has not been established in the reviewed sources.
Family: LPBF · Listing status only
Explore AMCM through the generationsRead this with the specifications
The standard stated build envelope is retained; bespoke height and laser options are separate configurations.
A larger nominal envelope does not establish better print quality. Fit depends on the configuration, usable area, supports, and orientation.
